Industrial Heaters

Industrial Heaters offered are well recognized for their easy replace-ability, longer service life and capability to provide excellent heating in open air. These heaters are available in different specifications from 20 mm to 100 mm O.D and in lengths up to 3000 mm inches. Further, these are also available in KW ranges from 2.5 KW to 27 KW. Some of the applications these are used in include Fertilizer, Packaging, Printing, Textile, Chemical and many more industries. With adherence to surfaces for faster conduction and convection of heat, the solutions offered under this category include Corrugation Heater, Immersion Heaters, Space Heaters Embedded Elements and Metal Casted Elements and Cartridge heaters.

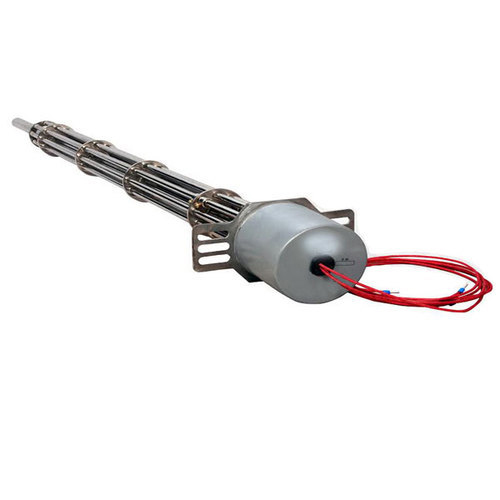

We are leading manufacturer and exporter of Corrugation Heater and our product is made up of good quality. Corrugation Heater offered to find application in heating the rolls of corrugation machines which are designed to form flute on papers.

These specific heater models also comprise a heating material which can be easily changed as well as helps in saving power consumption through quick heating ability, which is also one of the main USP of the products being offered.

These heaters are made available in KERONE MODEL with an outer diameter of 8 mm O.D. Further, in STANDARD MODEL, the outer diameter is 10.8 mm O.D that provides for longer durability.

Other than these, for achieving faster heating, high-speed models are also made available at 9 KW (+).

Applications:

• In the KERONE MODEL, the outer diameter is 8 mm O.D
• In the STANDARD MODEL, the outer diameter is 10.8 mm O.D, giving it a longer durability. For faster heating purposes, High-Speed Models are available at 9 KW (+).

Specifications

Machine Sizes	KW	Models
32" M/C	UPTO 7 KW	Kerone / Standard
42" M/C	UPTO 9KW	Kerone / Standard
45" M/C	UPTO 9 KW	Kerone / Standard / High Speed
52" M/C	UPTO 12 KW	Kerone / Standard / High Speed
62" M/C	UPTO 15 KW	Kerone / Standard / High Speed
65" M/C	UPTO 15 KW	Kerone / Standard / High Speed
72" M/C	UPTO 18KW	Kerone / Standard / High Speed
82" M/C	UPTO 18 KW	Kerone / Standard / High Speed

Technical Specifications

• Size : 32-82 Inch
• Power : 7-18 kW
• Brand : Kerone
• Outer diameter : 8-10.8 mm

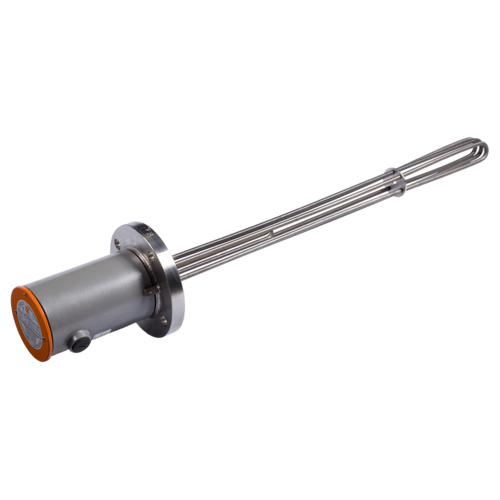

We are leading manufacturer and exporter of Immersion Heaters and our product is made up of good quality.

Immersion Heaters offered by us find application for heating corrosive as well as non-corrosive liquids where the element sheath is covered by metallic/non-metallic casing made of special alloys so as to provide in these immersion heaters longer service life standards.

These heaters are also made available in different variations in range of 1 KW to 4.5 KW, with threaded brass flanges (Nickel Chromium Plated) and adaptor of 1" B.S.P to 21/2" B.S.P.

These high rating heaters can also be made available on request with flanges connection and find applications in areas like Textiles, Nuclear Industry, Air conditioning, Pharmaceuticals, Chemicals and other areas.

Applications:

• Air conditioning, Pharmaceuticals, Chemicals, Textiles and Nuclear Industry etc.

Technical Specifications

• Adaptor : 1
• Brand : Kerone
• Flanges coating : Nickel Chromium Plated
• Flanges material : Threaded brass
• Power Range : 1 KW to 4.5 KW

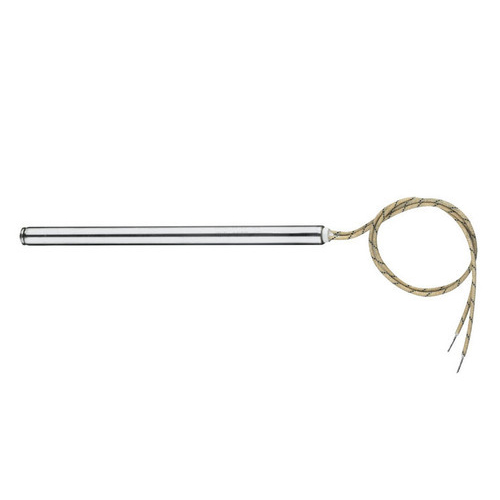

We are leading manufacturer and exporter of Cartridge Heaters and our product is made up of good quality.

Cartridge heaters offered comprise high watt and low watt cartridge heaters that find application in heating dies in Plastic, Packaging, Dies & Moulds industry and other similar industry sectors.

Finding application in basic to specific heating purposes, these are made available in sizes from 6 mm O.D to 2" O.D with standard fiberglass insulated lead wires that are externally connected to nickel pins with connection area electrically insulated through heavy-wall fiberglass sleeving.

With availability in form of 12" Leads are standard, these are made available with Swaged-in Flexible Leads (allowing great flexibility at lead exit point of heater), Teflon Leads & Seal (Teflon end seal swaged into heater sheath so as to provide moisture-resistant design), Internal Thermocouple (an integral method for temperature control) and others.

Some other thermocouple types that are available include Straight Braid Lead Protection, Straight Armor Cable, Right Angle Armor Cable with Copper Elbow and others.

Applications:

• Packing and plastic industry
• Dies & Moulds

Fuel Gas Heaters offered deliver optimum functionality as these feature use of filament tungsten wires with twin rubes filled with halogen gas.The products that we offer are engineered as per the industrial standards.

Specifications :

• Energy Source : Electric
• Wires : Filament tungsten
• Filling gas : Halogen gas
